Overview

Blue Robotics

During the Spring semester of 2021, four mechanical engineering students and I partnered with Blue Robotics , for our capstone project. This project encompassed the development of the first prototype of a seafloor imaging towfish that Blue Robotics has continued developing into a marketable product. Despite logistical complications caused by COVID-19, the team managed to build and test three prototypes in 98 days. The final prototype, the BlueFish, met the client’s requirements, though several areas of improvement and refinement were identified.

Click here to see the full report.

The Problem

Towfish are becoming more common in the hobby, science, and industrial communities and are used for many purposes, including pipeline monitoring, seafloor exploration or mapping, water quality monitoring, national defence, and more. Mounting a camera or imaging sonar to a towfish, as done in this project, improves image quality over a vessel mounted system since towfish are unaffected by waves on the surface. Adding depth and altitude control to the towfish further increases stability and image quality while enabling varying degrees of resolution. Currently, towfish with dynamic depth control do not exist on the market and alternatives are not affordable.

BlueFry I with the Final BlueFish Prototype

The first BlueFish prototype, named BlueFry I, was designed to fit in a Mazda Miata with the BlueBoat.

Objectives

Several objectives were identified early in the project and given varying weights of importance after consulting with our client, Blue Robotics. Some of these objectives included:

• Depth control - ± 0.25 m
• Response Frequency - < 0.5 Hz
• Pitch Control - ±3°
• Roll Control - ±3°
• Altitude - 1-10 m from the sea/lake floor
• Depth rating - 100 m
• Bill of Materials - $320-$400 (USD)

Full requirements and objectives documentation here.

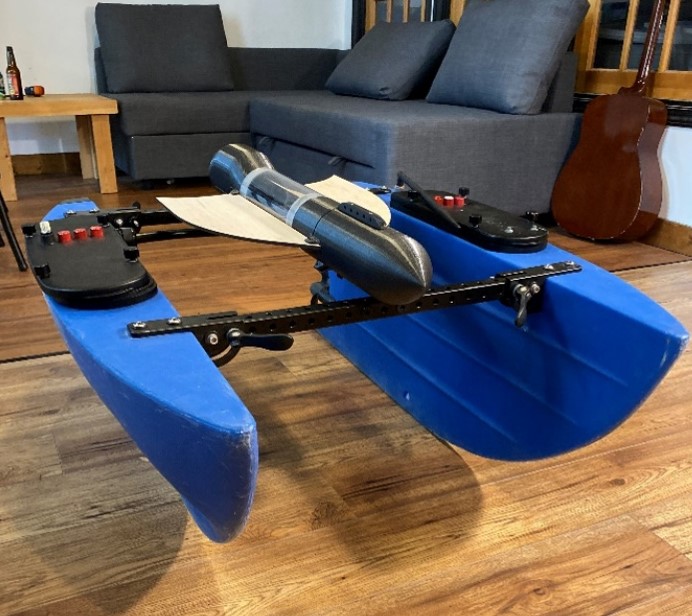

BlueFry I with a BlueBoat Prototype

The first BlueFish prototype, named BlueFry I, was designed to fit in a Mazda Miata with the BlueBoat. This was done to ensure that end users could easily transport the equipment without needing to disassemble either product without a large vehicle.

My Role

Throughout the project, major tasks were often split between two members with one member taking primary responsibility for the completion of the task and a second member providing support.

• Notable Primary Responsibilities:
  • I/O identification and specification
  • Communications between laptop, Raspberry Pi, and Arduino Uno
  • Electrical prototyping (breadboard prototypes, soldering, test jigs, etc.)
  • Electronics packaging
  • Electronics tray design and manufacturing
  • Graphical User Interface (GUI)
• Notable Secondary Responsibilities:
  • Control system programming and troubleshooting
  • Circuit design and power requirements
  • Engineering drawings
  • Actuator transmission design
  • Final testing and PID tuning

Me and BlueFish

The Designs

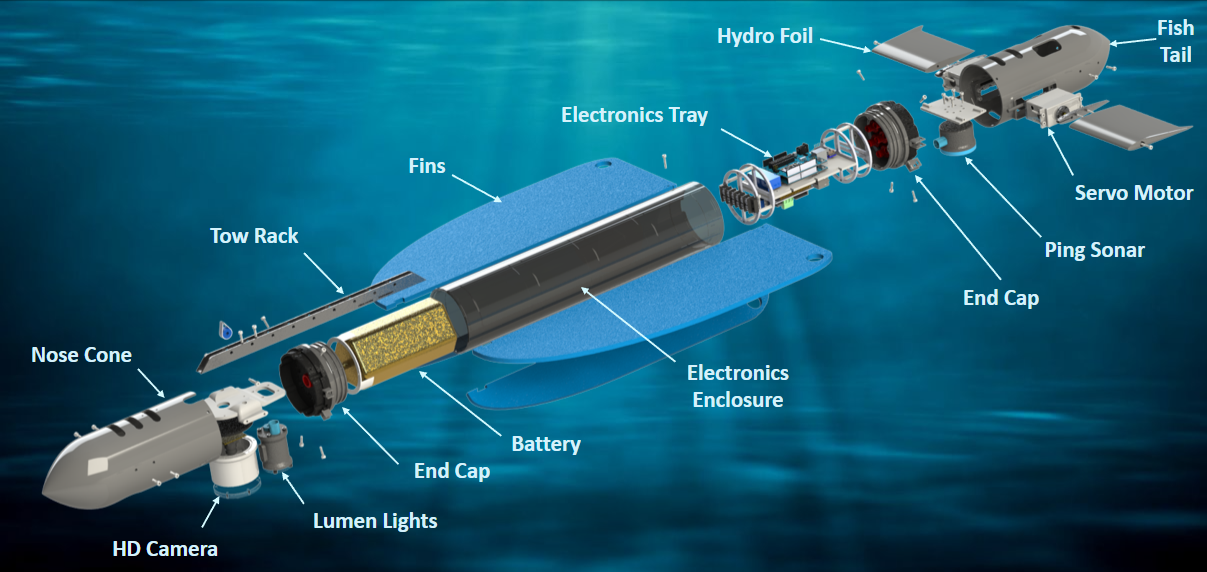

Final BlueFish Model (Exploded View)

Early in the project, one of my primary responsibilities was the specification of the electrical components and their interfaces. It was decided that for the purposes of this project, it would be best to use an Arduino Uno for the control logic of the BlueFish while data logging and communication to the BlueBoat or laptop would be done through a Raspberry Pi 3b+. Several sensors, lights, and actuators were also specified, many of which were designed and made by Blue Robotics. Collectively, this assembly was referred to as the FishGuts

Rough Wire Diagram

A rough wiring diagram was made to establish a wire coloring scheme and serve as a visual aid when prototyping.

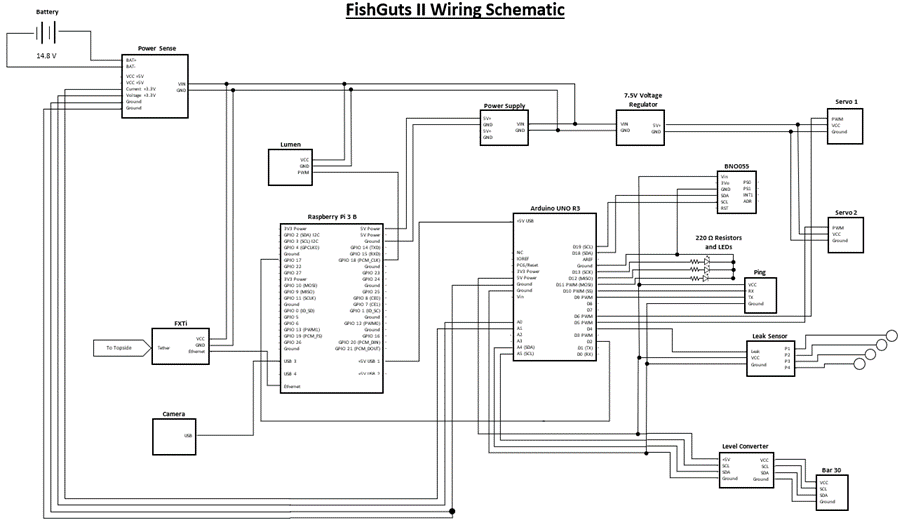

Final Wire Schematics

After finalizing the electrical component specification and power requirement calculations, a wiring schematic was made.

Before designing and manufacturing the electronics tray, several prototype iterations were made to test and troubleshoot the electrical system. This step also allowed me to practice my soldering skills as each prototype iteration progressed.

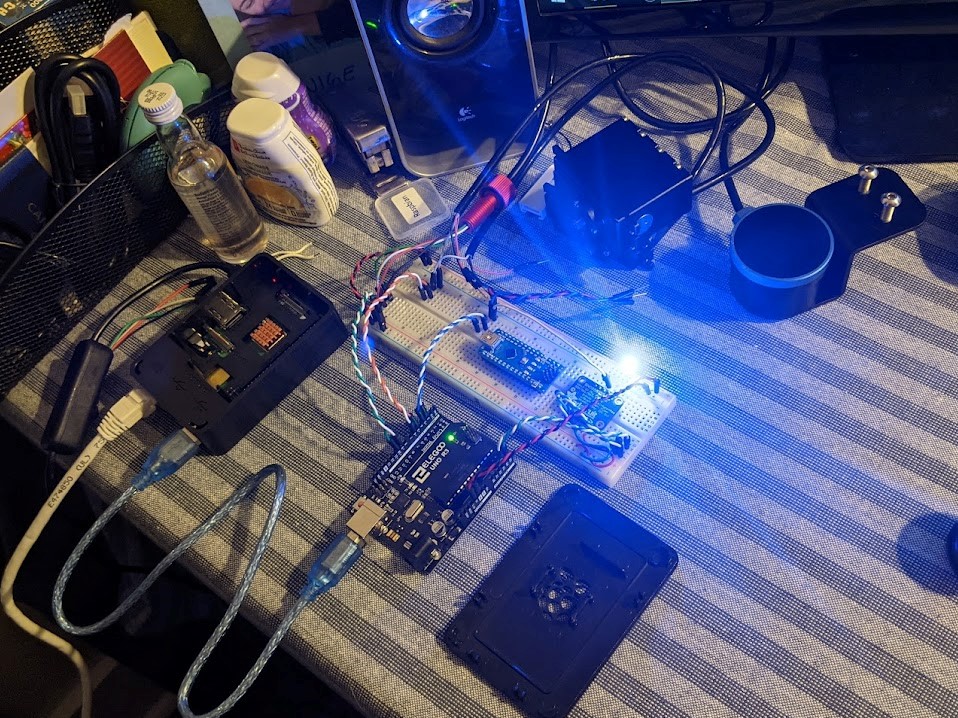

FishGuts Prototype 1

This prototype was largely made to test communication between all the electrical components (sensors, Arduino Uno, Raspberry Pi.

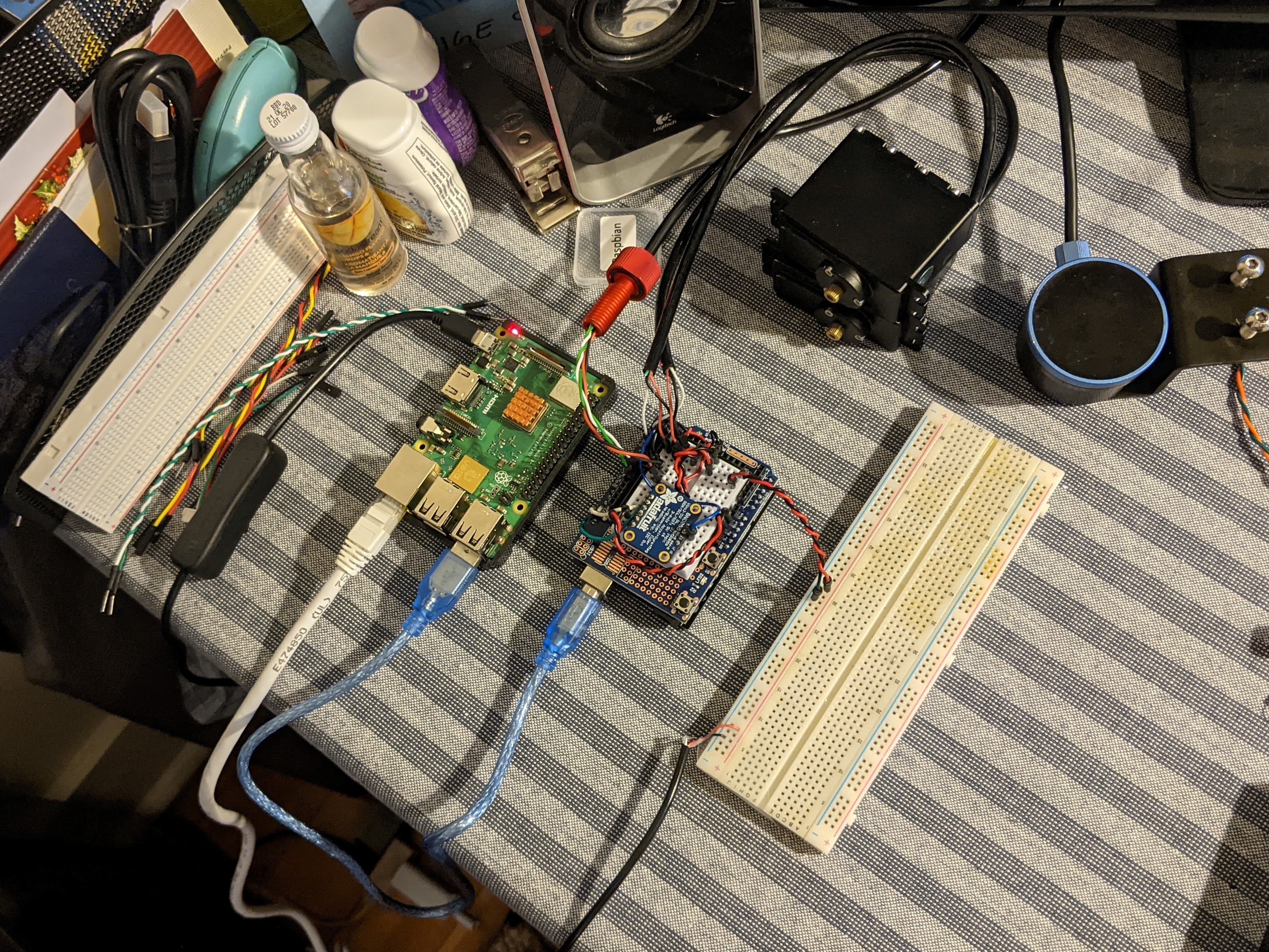

FishGuts Prototype 2

In the second prototype, a small breadboard was attached to the Arduino Uno and wiring for the final prototype was beginning to be thought of while integration of all the electrical components was continuing to be worked on.

FishGuts Prototype 3

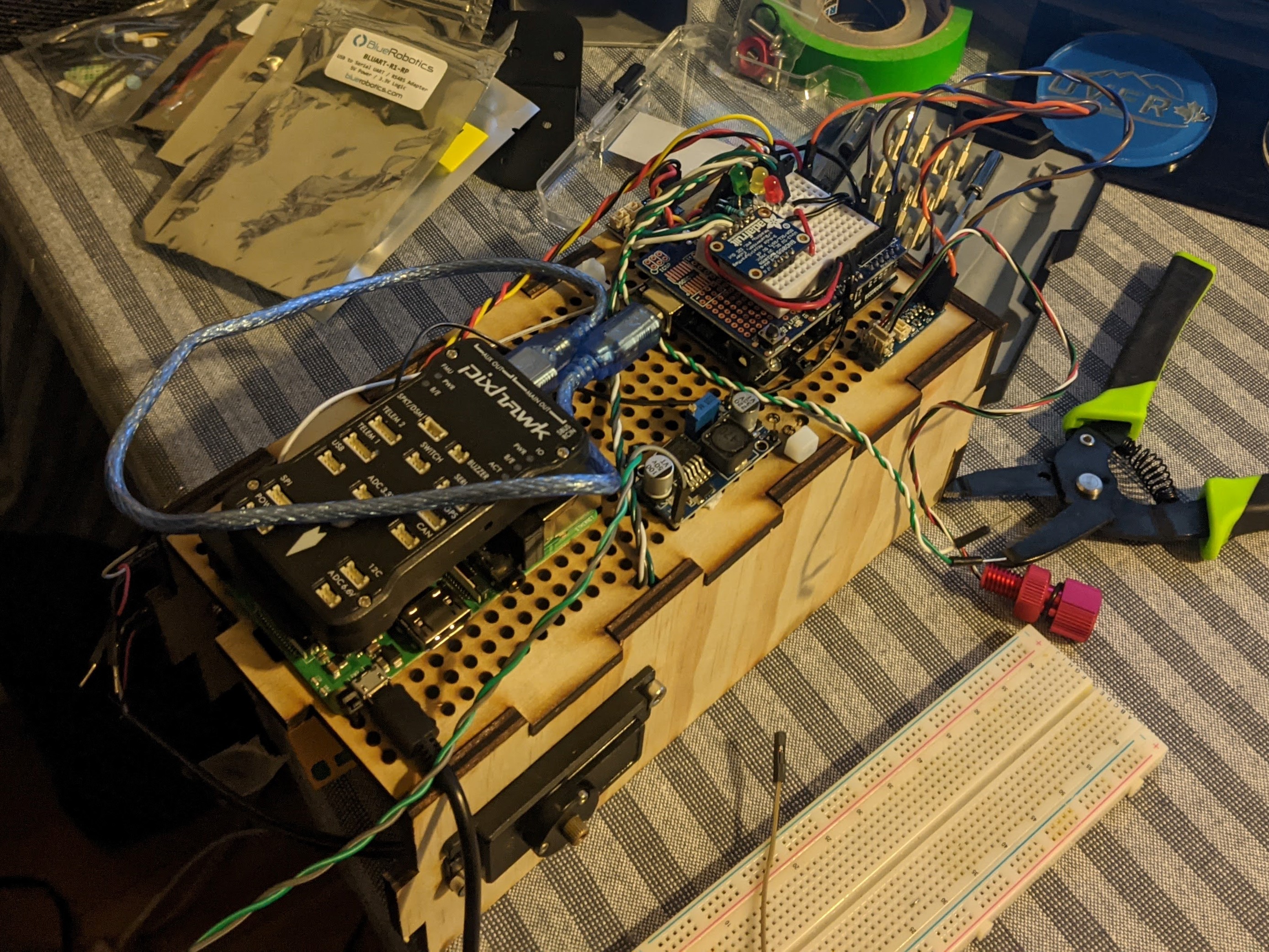

This prototype was made to begin dry testing of a near-complete electrical system. This included pitching and tilting the test jig to test the response of the motors to the jig's change in orientation.

Next, an electronics tray was designed and manufactured before assembling into the final BlueFish prototype. Several smaller components, such as the voltage converter, were not included in the CAD modal, but were allocated space during the design process, along with wire routing. As can be seen, the final assembly required tight packaging.

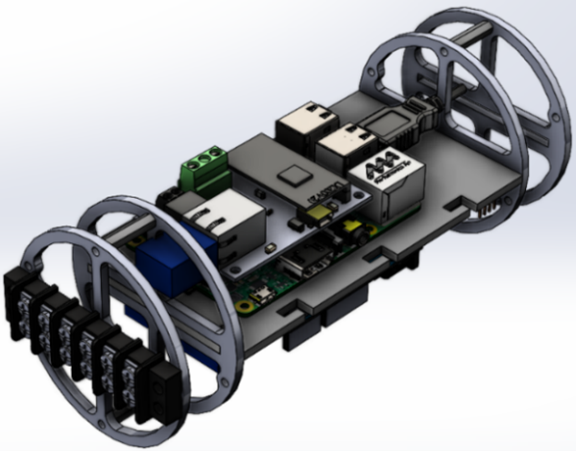

E-Tray Model Top

E-Tray Model Bottom

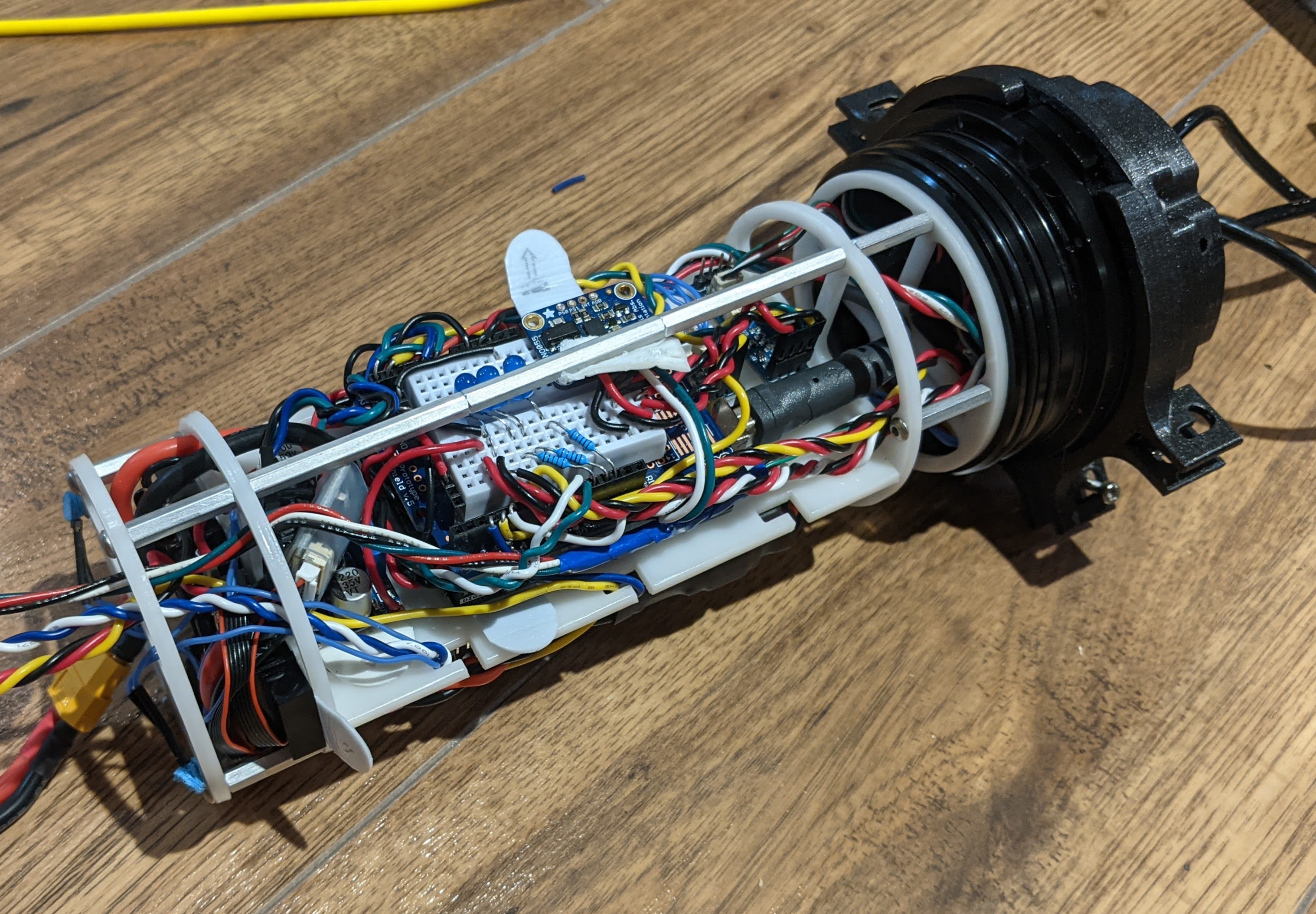

E-Tray Top

E-Tray Model Bottom

Lastly, I designed a GUI with PyQT5 so that users may communicate with the BlueFish and monitor data readings live. This was also made so that our group could quickly modify PID settings when testing and tuning the device. However, time constraints and a limitation of the python plotting library used prevented me from completing a working version of the live plotting feature. Nonetheless, the GUI worked well and allowed us to update the PID settings and retrieve data without having to extract the Blue Fish.

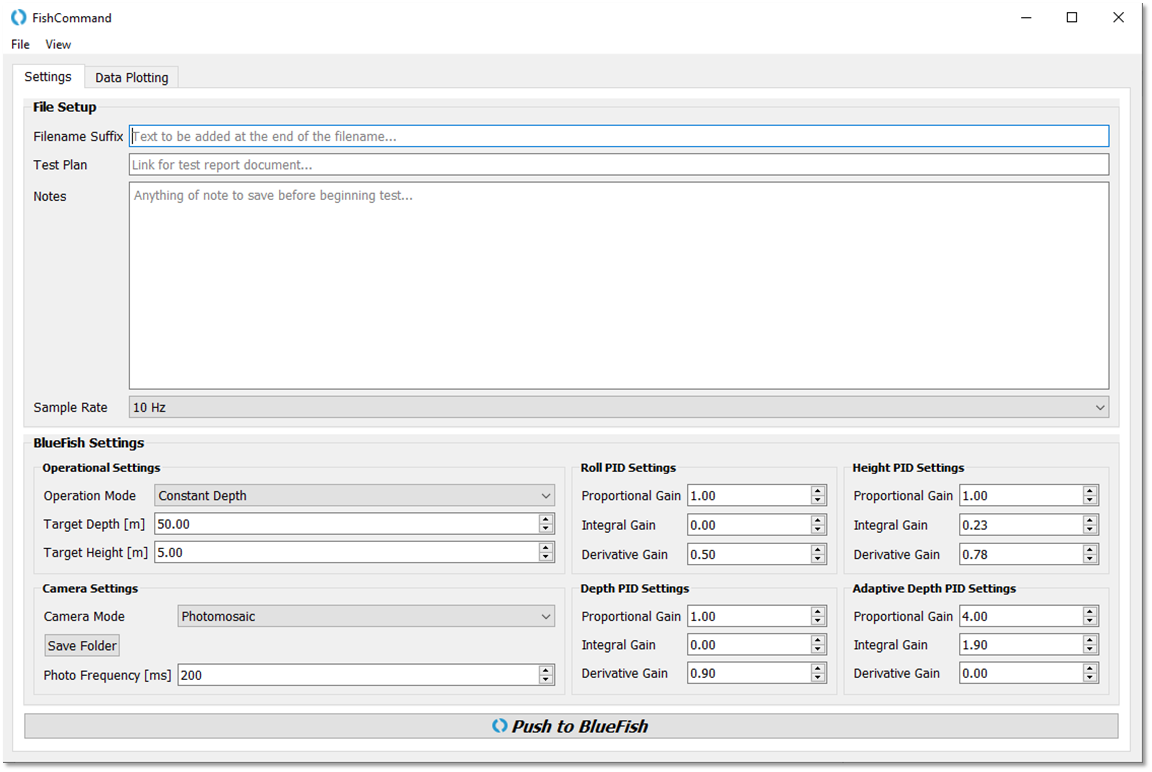

BlueCommand GUI - Settings Tab

This tab allowed users to customize the log file naming and make notes about the test before pushing settings to th BlueFish (which also subsequently created a new CSV file for data logging).

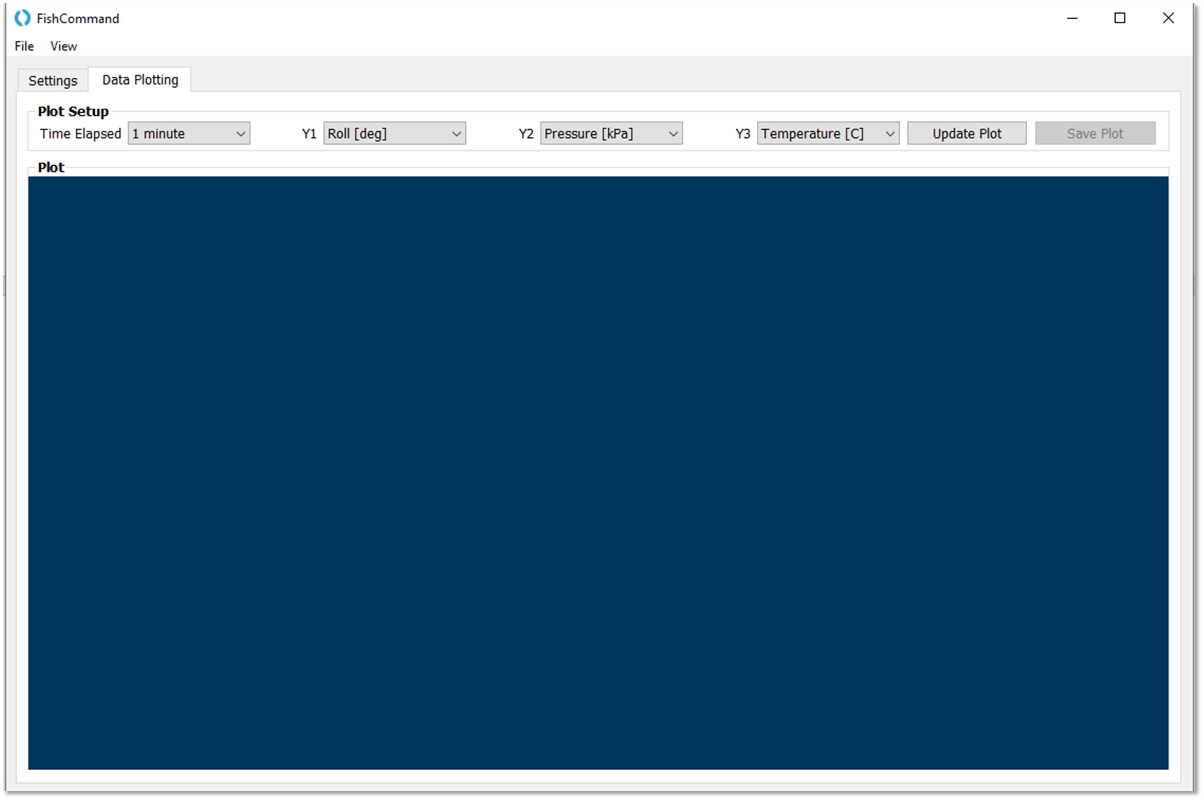

BlueCommand GUI - Data Plotting Tab

While developing this feature, I was unaware that the python plotting library, matplotlib, required the figure to be created/updated in the main thread of the program. Upon finding this out during a test run, it was decided that live plotting was not enough of a priority to spend time refactoring this feature's code.

The Results

As shown above, final testing unfortunately only took place off of a dock, rather than with a boat. We were thus unable to get the BlueFish into a steady-state mode for extended periods of time. However, the graphs below show that in the brief steady-state conditions that were observable (~7-20 seconds elapsed time), the BlueFish was relatively stable given how little PID tuning done during testing.

Depth

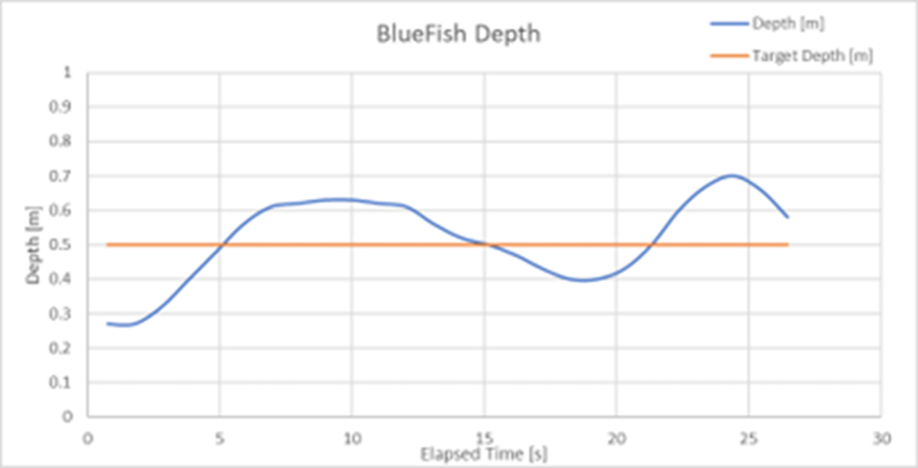

With a target depth of 0.5 meters below surface level, it can be seen that the BlueFish successfully dives from 0.3 m and retains an error of about ±0.1 m in depth. Given this was done with no PID tuning, this result was promising given the potential room for improvement with more control system development.

Roll

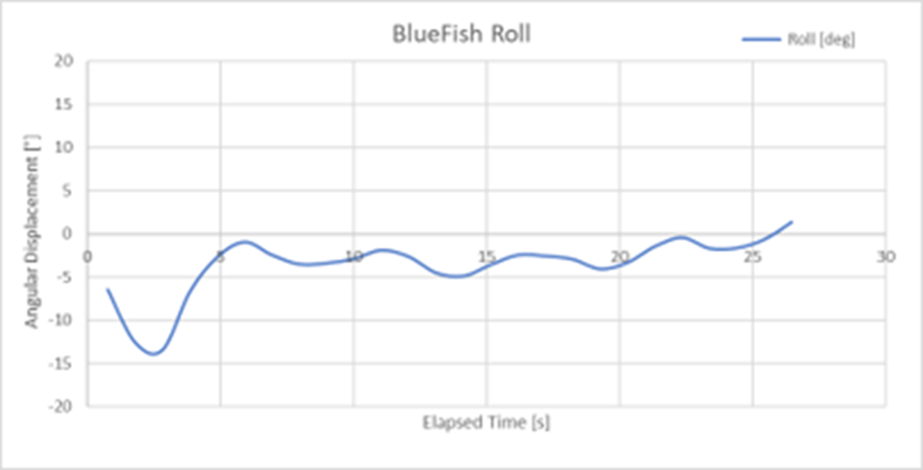

Roll remained between -1 and -5 degrees. The observed offset was theorized to be due to the method of towing the BlueFish from the edge of a dock, introducing a slight roll moment. However, without tuning the PID, the BlueFish still manages to obtain the ±3° of roll targeted in the objectives (neglecting the offset).

Pitch

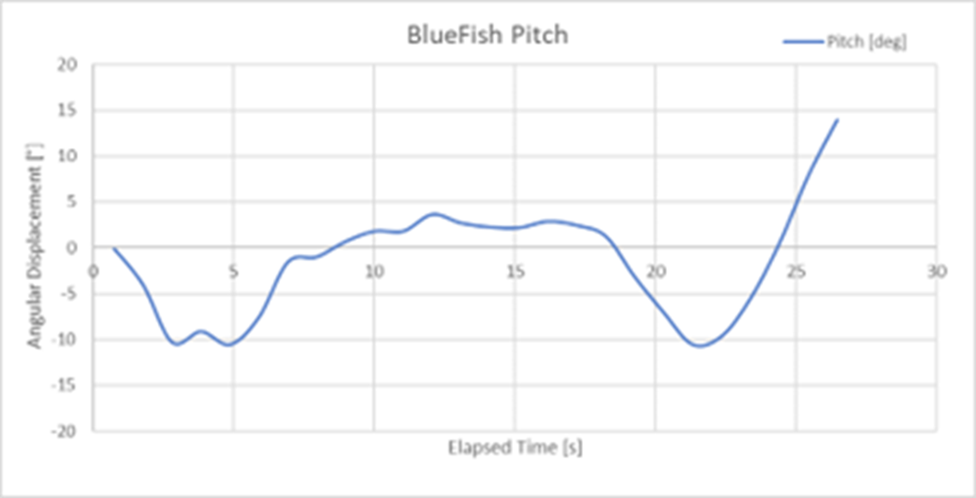

In rough steady-state, the BlueFish maintained a pitch between -1° and 4°, suggesting that the BlueFish met the original design objectives. However, it's likely that proper buoyancy and PID tuning with a more consistent input speed (such as a boat) would provide improved results.

Conclusion and Recommendations

Overall, the project was successful in creating a functional BlueFish prototype, along with documentation of its design, analysis, and testing. It was also found that the prototype met the client’s requirements. However, testing showed that there is plenty of room for further refinement of the mechatronic system and mechanical designs. Nonetheless, our team completed an initial prototype that was deemed worthy of continued development towards a marketable product.

Future Work

While early results were promising, much more testing needs to be done on the BlueFish, especially at more representative depths while being towed by a boat. However, several areas of improvement were identified:

• The 3D printed nosecone and tail designs need to be modified to a split design suitable for vacuum casting.
  • With this split, mounting of several components, like the lights and camera, can be significantly simplified.
  • Collectively, these changes will lower the final bill of materials cost
• The Arduino could be replaced by a Pixhawk flight controller to better integrate with the rest of Blue Robotics' existing software and development architecture.
• Significant work should be done to tune the PID settings of the BlueFish as we were unable to spend time doing so during testing.
• The implementation of live data plotting should be modified to run in the main thread of the BlueCommand GUI.
• Camera integration needs to be finished to create photomosaics of the seafloor.
• The BlueCommand software still presents some bugs which need to be corrected, along with some small quality-of-life improvements.

Click here to see the full final report on this project, including more details on future work.
